STRUGGLING TESTING ELECTRONICS?
We Made It EASY
- Resistors
- Capacitors
- Diodes
- Transistors
- Short Circuit
- Open Circuit

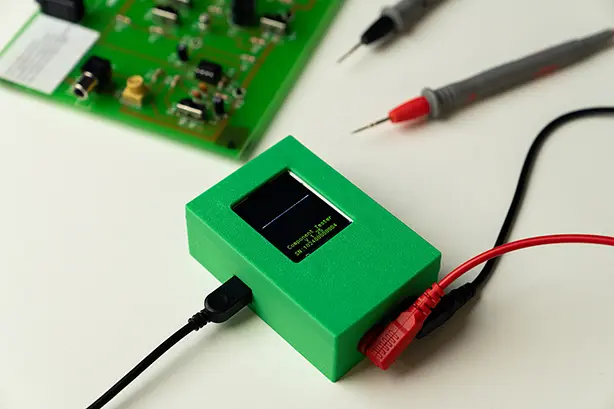

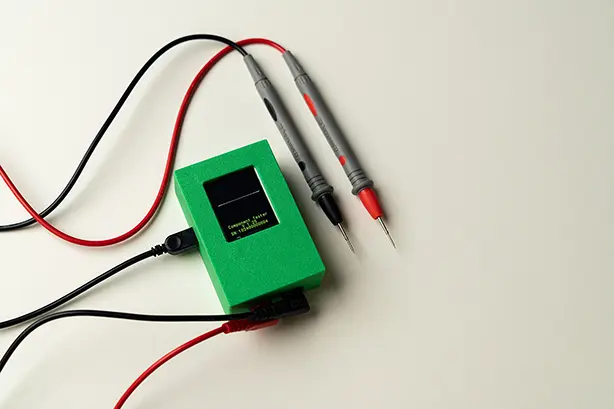

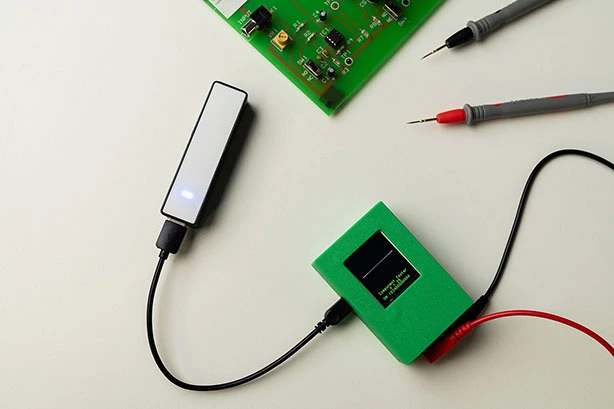

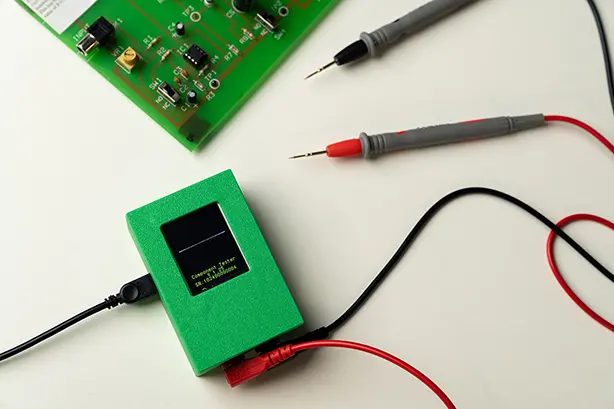

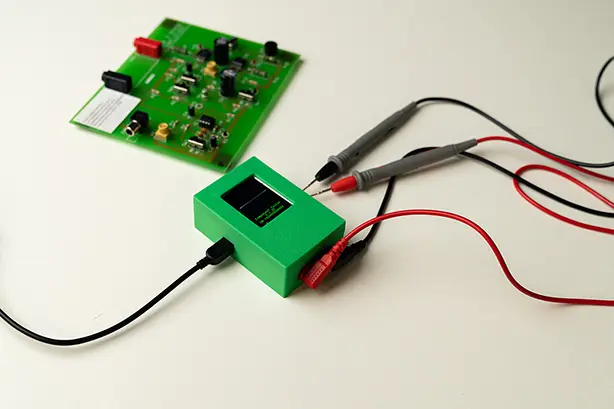

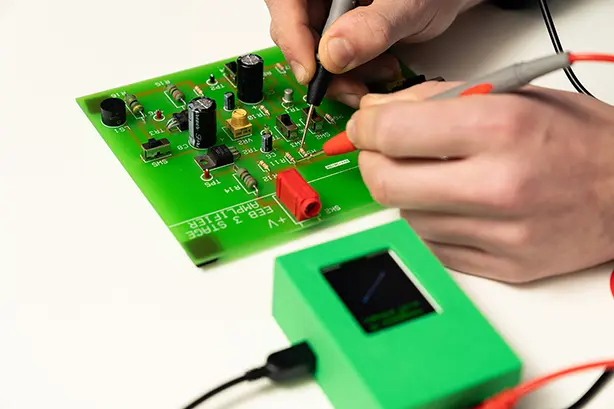

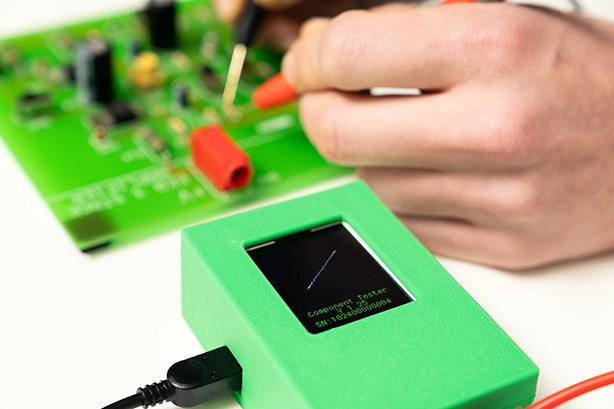

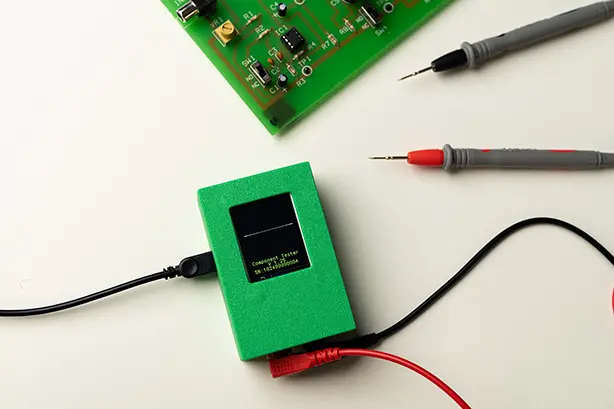

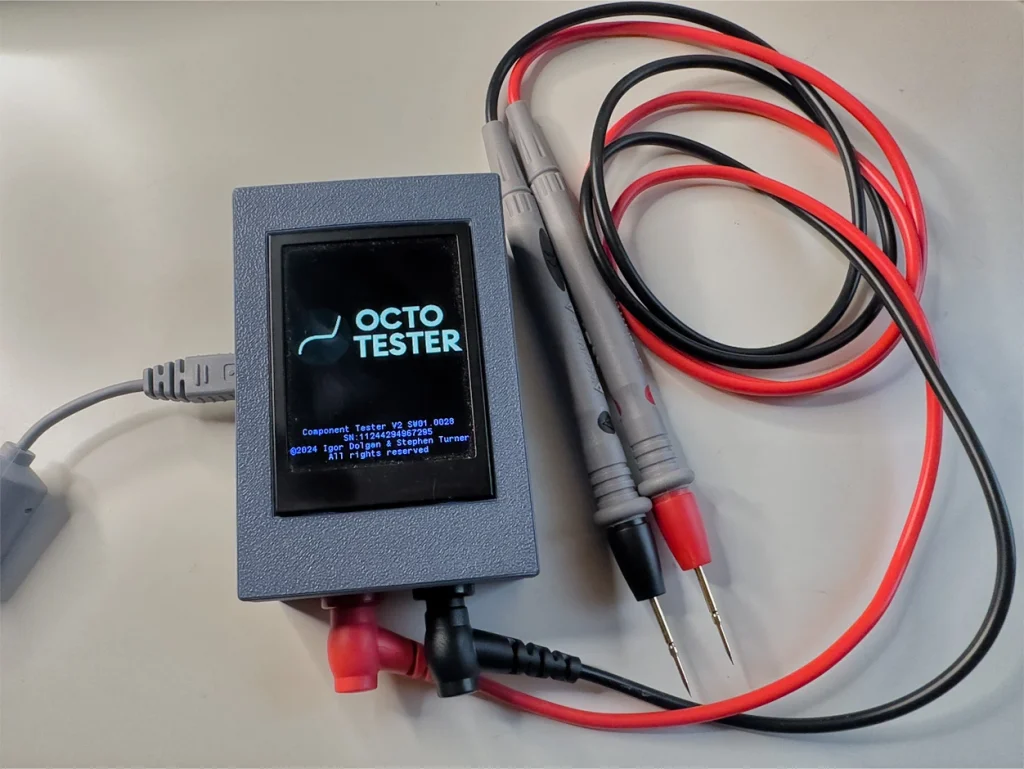

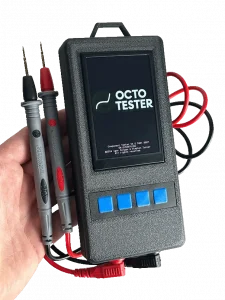

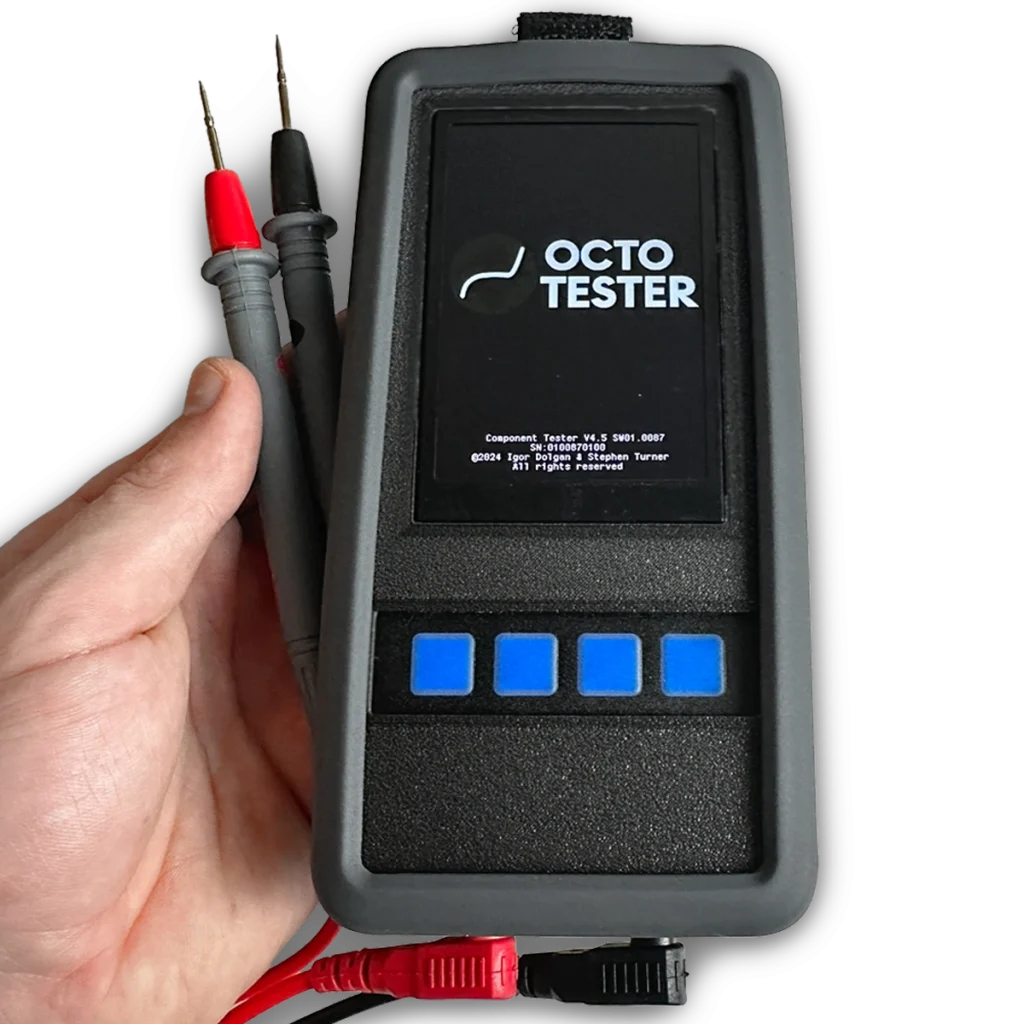

The octotester gives a visual representation of circuit electrical impedance allowing easy component fault detection.
Trusted By
Component Traces

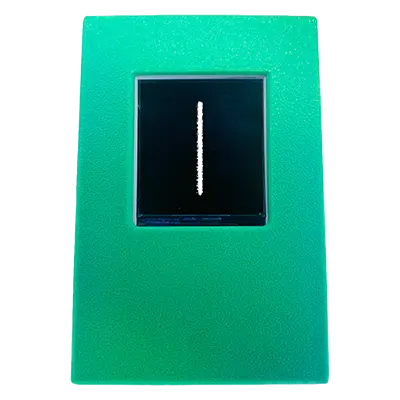

Short
Short circuit characteristic
Open
Open circuit characteristic
Resistance
Resistance in the trace
Component Traces

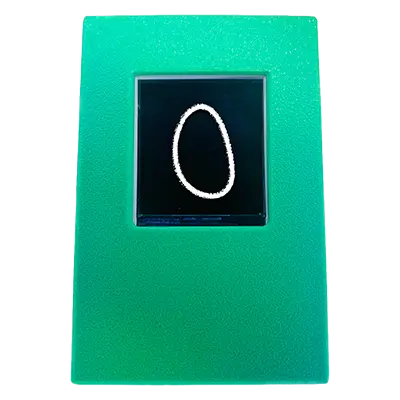

Capacitence
Capacitance in the trace

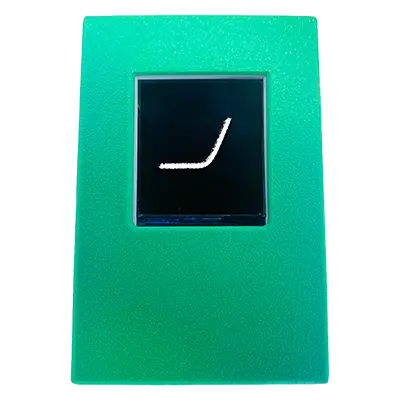

Diode
Characteristic of a diode

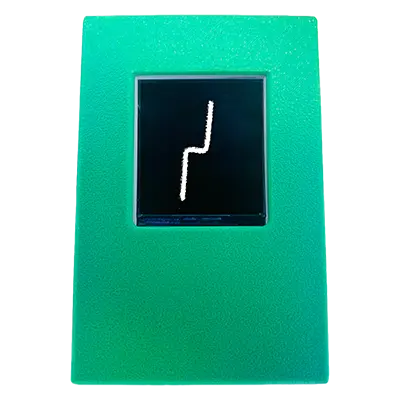

BJT
BJT emitter-base trace

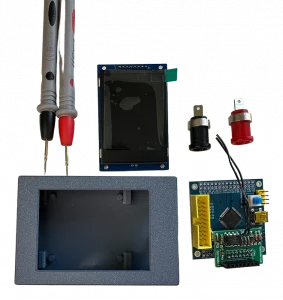

Check Out How To Build Your Own
This video outlines how to solder and assemble your Octotester kit, to get you up and testing SMOOTHLY.
Tried the Octotester? What do you think?
Kieron
@KieronR
I was on a site yesterday using the octo tester. I’d retrofitted a drive and it was tripping the mains as soon as power was applied. I used the tester to quickly test between input/output phases to see if I had any issues. I’d tested the unit before taking it to site so was a bit concerned on what was happening. I quickly realised because of the tester that I had filtering on the drive between phases and earth and it triggered me into thinking about this being the cause. Quickly pulled out the 2 EMC screws on the drive and everything was fine. Being able to visually see this instantly allowed me to figure out what was going on, without it I probably would have taken longer to get to the bottom of the issue. Very glad I had it with me.
Alex
@Alex9000-Paris
Very interesting device.
Abdus
@abdusqamar9667
Wow really useful feature!
Khurum
The tester is very responsive!
Spyton
@Spyton08
Good Work Mate
Ben
Works really well in the field when testing drives, spot on.
